Authorization

This page describes authorization settings for GitHub Agentic Workflows, including:

• GitHub Actions secrets, API Keys and tokens required for different AI engines
• GitHub tokens for GitHub tools and safe outputs
• Using a GitHub App as an alternative for authorization

Which GitHub Actions secrets do I need?

You will need one of the following GitHub Actions secrets configured in your repository to authenticate the AI engine you choose:

• Copilot – Add COPILOT_GITHUB_TOKEN
• Claude by Anthropic – Add ANTHROPIC_API_KEY
• Codex by OpenAI – Add OPENAI_API_KEY

Depending on what your workflow needs to do, you may need additional GitHub tokens added as repository secrets:

• Lockdown mode, cross-repo access, or remote GitHub tools – Add GH_AW_GITHUB_TOKEN
• GitHub Projects v2 operations – Add GH_AW_PROJECT_GITHUB_TOKEN
• Assign Copilot agents to issues/PRs – Add GH_AW_AGENT_TOKEN
• MCP server with special permissions – Add GH_AW_GITHUB_MCP_SERVER_TOKEN

How do I add a GitHub Actions secret to my repository?

You can add secrets manually in the GitHub UI or use the CLI for a streamlined experience.

Adding secrets using the CLI

gh aw secrets set COPILOT_GITHUB_TOKEN --value "YOUR_COPILOT_PAT"

You can also check existing secrets with:

gh aw secrets bootstrap

Caution

The gh aw secrets set command does not work in GitHub Codespaces. If you’re working in Codespaces, use the GitHub UI method below to add secrets.

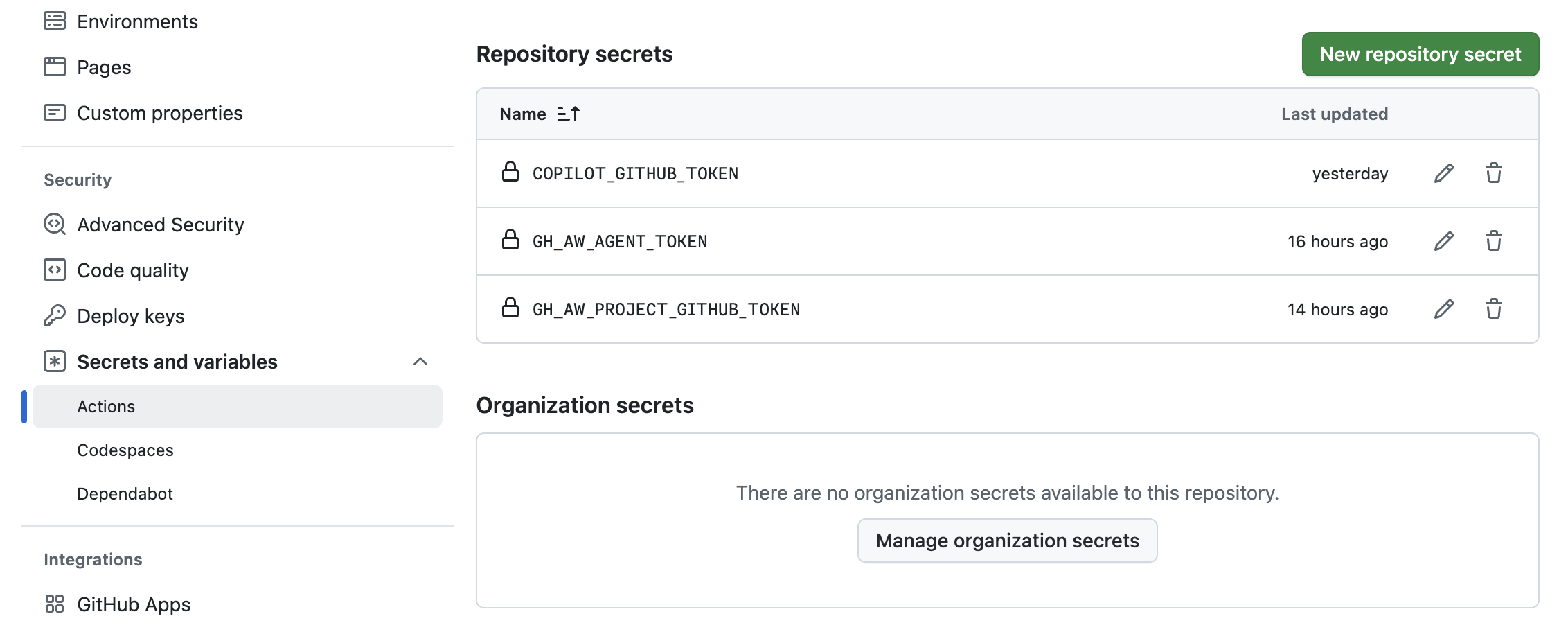

Adding secrets using the GitHub UI

1. Go to your repository on GitHub
2. Click on “Settings” → “Secrets and variables” → “Actions”
3. Click “New repository secret” and add the token name and value

GitHub Actions secrets and tokens

A reference for all GitHub Actions secrets and tokens used by GitHub Agentic Workflows, including when they are needed and how to set them up.

COPILOT_GITHUB_TOKEN

If using the Copilot CLI, you need a GitHub Actions Secret set to a GitHub Personal Access Token (PAT) with the copilot-requests scope to authenticate Copilot CLI.

Setup:

Create a fine-grained PAT:

1. Select your user account, not an organization.
2. Choose “Public repositories” access, even if adding to a private repo.
3. Enable “Copilot Requests” permissions.

You must have “Public repositories” selected; otherwise, the Copilot Requests permission option will not appear.

Then add the PAT to your GitHub Actions repository secrets as COPILOT_GITHUB_TOKEN, either by CLI or GitHub UI (see video).

gh aw secrets set COPILOT_GITHUB_TOKEN --value "<your-github-pat>"

Creating a fine-grained PAT for user-owned repositories with Copilot permissions

---

ANTHROPIC_API_KEY

If using the Claude by Anthropic engine, you need to set a GitHub Actions secret ANTHROPIC_API_KEY to be an API key from Anthropic.

Setup:

1. Create an API key at https://platform.claude.com/docs/en/get-started

2. Add it to your repository secrets:

   gh aw secrets set ANTHROPIC_API_KEY --value "YOUR_ANTHROPIC_API_KEY"

See also (/gh-aw/reference/engines/#using-claude-by-anthropic-claude-code) for additional configuration needed when using Claude with GitHub MCP.

---

OPENAI_API_KEY

If using the Codex by OpenAI engine, you need to set a GitHub Actions secret OPENAI_API_KEY with an API key from OpenAI.

Setup:

1. Create an API key at https://platform.openai.com/api-keys

2. Add it to your repository secrets:

   gh aw secrets set OPENAI_API_KEY --value "YOUR_OPENAI_API_KEY"

See also (/gh-aw/reference/engines/#using-openai-codex) for additional configuration needed when using Codex with GitHub MCP.

---

GH_AW_GITHUB_TOKEN

A Personal Access Token (PAT) with appropriate scopes and permissions for enhanced security and cross-repository operations.

When Required:

• Lockdown Mode: This or a similar token is required when lockdown: true is set in workflow frontmatter. The workflow will fail at runtime if the token is not configured.
• Cross-repository operations: Required for accessing other repositories beyond the current one.
• Remote GitHub tools mode: Required for faster startup without Docker.
• Codex engine operations: Required for GitHub MCP integration.

Note that using GH_AW_GITHUB_TOKEN replaces the default behaviour of GitHub Agentic Workflows (which arranges temporary GITHUB_TOKEN GitHub Actions tokens appropriate to the permissions: you have declared).

---

GH_AW_GITHUB_MCP_SERVER_TOKEN

If you need different permissions for the GitHub MCP server than the default, you can configure GH_AW_GITHUB_MCP_SERVER_TOKEN with a Personal Access Token (PAT) or use a GitHub App for enhanced security.

Use this when you need different permission levels for MCP server operations versus other workflow operations.

When to use:

• You need different permission levels for MCP server vs. other operations.
• You want to isolate MCP server authentication from general workflow authentication.
• You are using remote GitHub MCP mode and need a token with specific scopes.

Setup:

Create a fine-grained PAT with:

• Repository access:
  • Select specific repos or “All repositories”
• Repository permissions (based on your GitHub tools usage):
  • Contents: Read (minimum for toolset: repos)
  • Issues: Read (for toolset: issues)
  • Pull requests: Read (for toolset: pull_requests)
  • Adjust based on the toolsets you configure in your workflow

Then configure in your workflow frontmatter:

permissions:
  contents: read
  issues: read

tools:
  github:
    mode: remote  # or "local" for Docker-based
    toolsets: [repos, issues, pull_requests]
    github-token: ${{ secrets.GH_AW_GITHUB_MCP_SERVER_TOKEN }}

Or add to repository secrets:

gh aw secrets set GH_AW_GITHUB_MCP_SERVER_TOKEN --value "YOUR_MCP_PAT"

---

GH_AW_PROJECT_GITHUB_TOKEN

If using GitHub Projects v2 operations, you need to configure this GitHub Actions secret with a Personal Access Token (PAT) that has the appropriate scopes and permissions for Projects access.

This is specialized token for GitHub Projects operations, required because the default GITHUB_TOKEN cannot access the Projects API.

When to use:

• Any Projects operation (creating, updating, or reading project boards).
• Workflows that call update-project, create-project-status-update safe output.
• When you want to isolate Projects permissions from other workflow operations.

Setup:

The required token type depends on whether you’re working with user-owned or organization-owned Projects:

For User-owned Projects:

Creating a classic PAT for user-owned private projects

You must use a classic PAT with the project scope. Fine-grained PATs do not work with user-owned Projects.

1. Create a classic PAT with scopes:
   • project (required for user Projects)
   • repo (required if accessing private repositories)

For Organization-owned Projects (v2):

Creating a fine-grained PAT for organization-owned projects

You can use either a classic PAT or a fine-grained PAT:

1. Option A: Create a classic PAT with project and read:org scopes:

   • project (required)
   • read:org (required for org Projects)
   • repo (required if accessing private repositories)

2. Option B (recommended): Create a fine-grained PAT with:

   • Repository access: Select specific repos that will use the workflow
   • Repository permissions:
     • Contents: Read
     • Issues: Read (if needed for issue-triggered workflows)
     • Pull requests: Read (if needed for PR-triggered workflows)
   • Organization permissions (must be explicitly granted):
     • Projects: Read & Write (required for updating org Projects)
   • Important: You must explicitly grant organization access during token creation

3. Option C: Use a GitHub App with Projects: Read+Write permission

After creating your token, add it to repository secrets:

gh aw secrets set GH_AW_PROJECT_GITHUB_TOKEN --value "YOUR_PROJECT_PAT"

Token precedence and fallback:

per-output -> workflow-level -> GH_AW_PROJECT_GITHUB_TOKEN -> GITHUB_TOKEN.

Example configuration:

---
# Option 1: Use GH_AW_PROJECT_GITHUB_TOKEN secret (recommended for org Projects)
# Just create the secret - no workflow config needed
---

# Option 2: Explicitly configure at safe-output level
safe-outputs:
  update-project:
    github-token: ${{ secrets.CUSTOM_PROJECT_TOKEN }}

# Option 3: Organization projects with GitHub tools integration
tools:
  github:
    toolsets: [default, projects]
    github-token: ${{ secrets.ORG_PROJECT_WRITE }}
safe-outputs:
  update-project:
    github-token: ${{ secrets.ORG_PROJECT_WRITE }}

Notes:

• For organization-owned projects, configure both GitHub tools and safe outputs with the same token.
• Default behavior: update-project is update-only. It will not create projects. If a project does not exist, the job fails with instructions to create it manually.
• The default GITHUB_TOKEN cannot be used for Projects v2 operations. Configure GH_AW_PROJECT_GITHUB_TOKEN or provide a custom token via safe-outputs.update-project.github-token.
• GitHub Projects v2 PAT Requirements:
  • User-owned Projects: Require a classic PAT with the project scope (plus repo if accessing private repos). Fine-grained PATs do not work with user-owned Projects.
  • Organization-owned Projects: Can use either a classic PAT with project + read:org scopes, or a fine-grained PAT with:
    • Repository access to specific repositories
    • Repository permissions: Contents: Read, Issues: Read, Pull requests: Read (as needed)
    • Organization permissions: Projects: Read & Write
    • Explicit organization access granted during token creation
  • GitHub App: Works for both user and org Projects with Projects: Read+Write permission.
• To opt-in to creating projects, the agent must include create_if_missing: true in its output, and the token must have sufficient permissions to create projects in the organization.
• Use GH_AW_PROJECT_GITHUB_TOKEN for Projects-specific isolation; use GH_AW_GITHUB_TOKEN if it already has Projects permissions and you do not need isolation.

---

GH_AW_AGENT_TOKEN

If you want to programmatically assign Copilot agents to issues or pull requests, you need to configure GH_AW_AGENT_TOKEN with a Personal Access Token (PAT) that has the appropriate scopes and permissions for issue and PR management.

Is token/secret is used by assign-to-agent: safe outputs to programmatically assign Copilot agents to issues or pull requests.

Setup:

The required token type and permissions depend on whether you own the repository or an organization owns it:

For User-owned Repositories:

1. Create a fine-grained PAT with:
   • Resource owner: Your user account
   • Repository access: “Public repositories” or select specific repos
   • Repository permissions:
     • Actions: Write
     • Contents: Write
     • Issues: Write
     • Pull requests: Write

For Organization-owned Repositories:

Creating a fine-grained PAT for organization-owned repositories with permissions for agent assignment

When an organization owns the repository, you need a fine-grained PAT with the resource owner set to the organization:

1. Create a fine-grained PAT with:

   • Resource owner: The organization that owns the repository
   • Repository access: Select the specific repositories that will use the workflow
   • Repository permissions:
     • Actions: Write
     • Contents: Write
     • Issues: Write
     • Pull requests: Write
   • Important: You must set the resource owner to the organization during token creation

2. Add to repository secrets:

gh aw secrets set GH_AW_AGENT_TOKEN --value "YOUR_AGENT_PAT"

Token precedence and fallback:

GH_AW_AGENT_TOKEN -> GH_AW_GITHUB_TOKEN -> GITHUB_TOKEN.

Notes:

Two ways to assign Copilot agents

There are two different methods for assigning GitHub Copilot agents to issues or pull requests. Both methods use the same token (GH_AW_AGENT_TOKEN) and GraphQL API to perform the assignment:

1. Via assign-to-agent safe output: Use when you need to programmatically assign agents to existing issues or PRs through workflow automation. This is a standalone operation that requires the token documented on this page.

safe-outputs:
  assign-to-agent:
    name: "copilot"
    allowed: [copilot]

2. Via assignees field in create-issue: Use when creating new issues through workflows and want to assign the agent immediately. When copilot is in the assignees list, it is automatically filtered out and assigned via GraphQL in a separate step after issue creation (using the same token and API as method 1).

safe-outputs:
  create-issue:
    assignees: copilot  # or assignees: [copilot, user1]

Both methods result in the same outcome as manually assigning issues to Copilot through the GitHub UI. Method 2 is simpler when creating issues, while method 1 provides fine-grained control for existing issues.

Technical implementation: Both methods use the GraphQL replaceActorsForAssignable mutation to assign the copilot-swe-agent bot to issues or PRs. Both follow the token precedence and fallback behavior documented above.

See GitHub’s official documentation on assigning issues to Copilot for more details on the Copilot coding agent.

Resource owner requirements: The token’s resource owner must match the repository ownership:

• User-owned repositories: Use a token where the resource owner is your user account
• Organization-owned repositories: Use a token where the resource owner is the organization

This ensures the token has the appropriate permissions to assign agents to issues and pull requests in the repository.

---

Using a GitHub App for authentication

For enhanced security with short-lived tokens, you may configure a GitHub App instead of using PATs.

This does not apply to COPILOT_GITHUB_TOKEN, which must currently be a PAT. A single GitHub App can be used for all other GitHub tokens.

After creating your app, there are two ways to configure it in your workflow:

Option 1: Direct configuration (more control)

permissions:
  contents: read
  issues: read

tools:
  github:
    mode: remote
    toolsets: [repos, issues, pull_requests]
    app:
      app-id: ${{ vars.APP_ID }}
      private-key: ${{ secrets.APP_PRIVATE_KEY }}
      owner: "my-org"                    # Optional: defaults to current repo owner
      repositories: ["repo1", "repo2"]   # Optional: defaults to current repo only

Option 2: Shared workflow (recommended - centralized configuration)

Use the provided shared workflow for centralized configuration:

imports:
  - shared/github-mcp-app.md  # Provides APP_ID and APP_PRIVATE_KEY configuration

permissions:
  contents: read
  issues: read

tools:
  github:
    mode: remote
    toolsets: [repos, issues, pull_requests]

The shared workflow (shared/github-mcp-app.md) expects:

• Repository Variable: APP_ID - Your GitHub App ID
• Repository Secret: APP_PRIVATE_KEY - Your GitHub App private key

Set up repository variables and secrets:

gh variable set APP_ID --body "123456"
gh aw secrets set APP_PRIVATE_KEY --value "$(cat path/to/private-key.pem)"

How it works:

At workflow start, a token is automatically minted with permissions matching your job’s permissions: field. The token is passed to the GitHub MCP server and automatically revoked at workflow end (even on failure).

This is the same per-job narrowing behavior used by safe-outputs.app: - see the Safe Outputs documentation for a detailed explanation of how GitHub App tokens are narrowed per-job.

Who owns a GitHub token?

Ownership affects token requirements for repositories and Projects (v2). If the owner is your personal username, it is user-owned. If the owner is an organization, it is org-owned and managed with shared roles and access controls.

To confirm ownership, check the owner name and avatar at the top of the page or in the URL (github.com/owner-name/...). Clicking the owner takes you to a personal profile or an organization page, which confirms it instantly. Here are examples of both (left: user-owned, right: org-owned):

User-owned repository

Avatar shows a personal profile icon, URL includes username

Organization-owned repository

Avatar shows organization icon, URL includes org name

---

Related Documentation

• Engines - Engine-specific authentication
• Safe Outputs - Safe output token configuration
• Tools - Tool authentication and modes
• Permissions - Permission model overview
